Robot packing and stacking of timber bundles

Programmed Timber Supplies supply to users of bulk timber & timber components. Customers include wall frame & roof truss fabricators, furniture manufactures & importers, industrial manufacturers, packaging suppliers, distribution & logistic companies, independent & chain building material outlets and wholesale timber distributors.

Working closely with their clients to achieve the best outcome in terms of product grade & quality, supplied at the right time and priced to meet the highly competitive market in which they operate.

A well programmed timber supply is always their goal.

Wanting to meet expected future growth, a robot packing and stacking solution was sourced to handle the output of their docking system.
Implementing a robot into production also eliminates the numerous OHS risks associated with the task.

The robotic timber handling system has been designed to accommodate various sized timber products that go through the line, and utilises a heavy duty robotic timber gripper. The gripper is multi function, also used to place a slip sheet between layers.

The robot palletiser operates with no external PLC, making a very simple low cost implementation with high ROI for the owners at Programmed Timber Supplies.

The Fanuc R2000iC/165F robot is perfect for palletizing applications due to its large working envelope, high payload, and high speed.

If you are also looking for an intelligent cost effective automated solution to palletise or stack timber products, then Automation Solutions has a solution for you.
Contact us today!

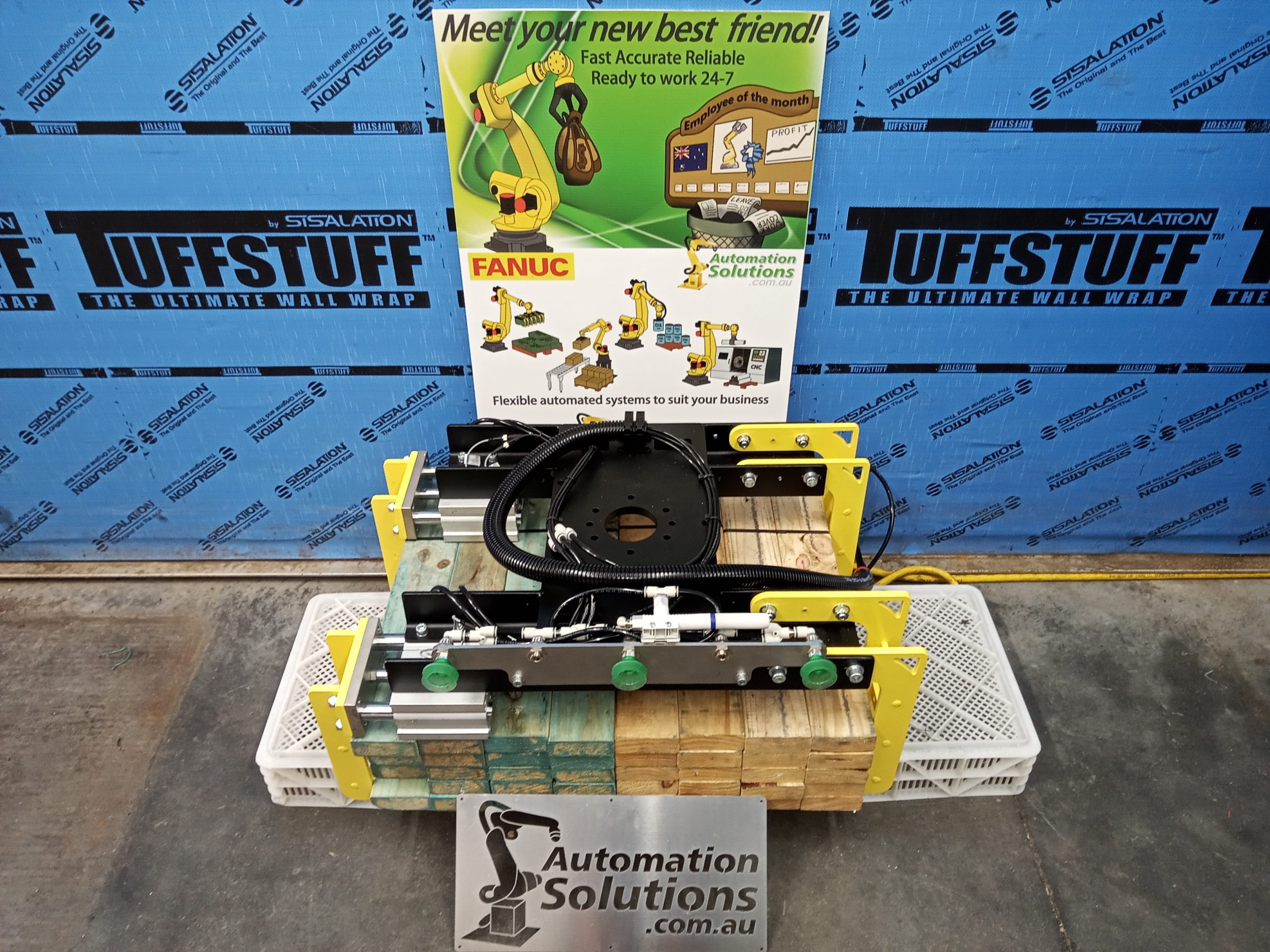

Robotic timber gripper

Robot Systems Australia

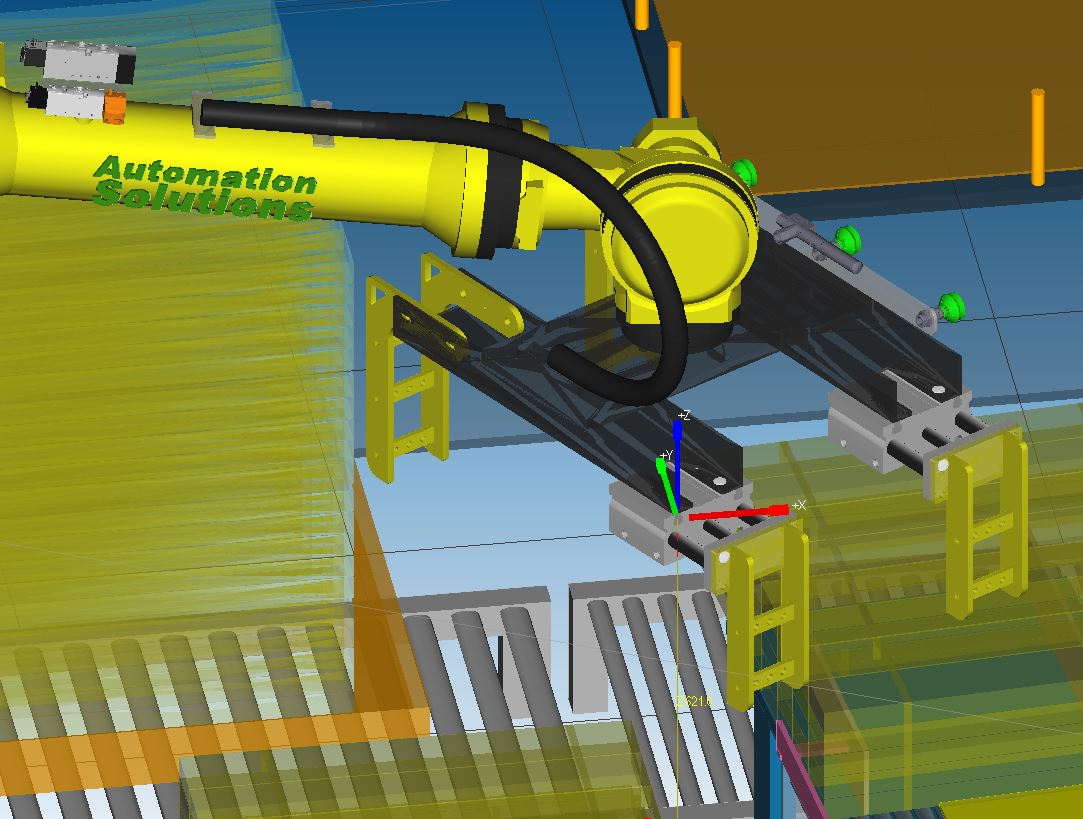

Roboguide simulation

Robot Systems Australia

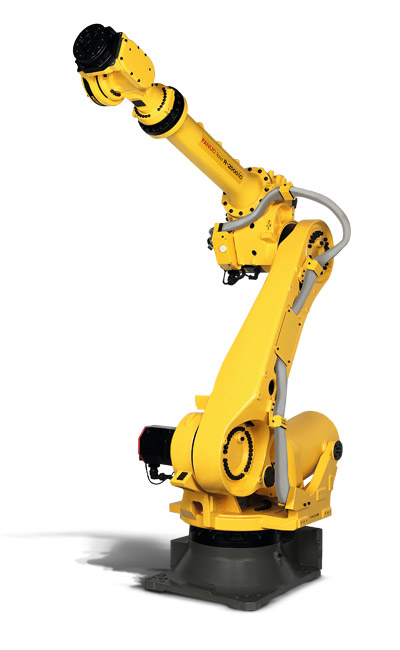

Fanuc R-2000iC/165F

The Fanuc R-2000iC/165F is Fanuc Robotics’ latest-generation palletizing industrial robot. The unit is engineered for precision high-speed/high-payload operation, user friendly setup, and maximum reliability supported by our extensive service and parts network.
The FANUC R-2000iC/165F is a heavy payload robot that is a perfect addition to the factory floor for. Great for material handling, spot welding, dispensing, and many more applications.
The FANUC R 2000iC/165F is also a great robot to work in small spaces as it has a slim arm and wrist assemblies. Integration is also made easier with its numerous process attachment points. You can also expect higher up-time, overall productivity, and greater throughput with the R-2000iB/165F on your production line.

Supported remotely from Melbourne.

Robot Systems Australia

Specifications

Axes: 6
Payload: 165kg
Reach: 2655mm
Repeatability: ±0.05mm
Robot Mass: 1090kg
Structure: Heavy Payload

Robot Motion Speed

J1 130 °/s
J2 115 °/s
J3 125 °/s
J4 180 °/s
J5 180 °/s
J6 260 °/s

Robot Motion Range

J1 370°
J2 136°
J3 312°
J4 720°
J5 250°
J6 720°
